Description
Technology Parameters
Brand: Capacity.Li
Nominal voltage: 12V
Case material:plastic
Nominal capacity: 200AH
Maximum instantaneous charge or discharge current: 200A
Maximum continuous charge or discharge current: 120A
Service life: more than 1000 cycles
Charging temperature: -20~45℃
Discharge temperature: -40~60℃
Storage temperature: -50~85℃
Weight: about 15Kg
Size: 390 * 310 * 210mm (with wiring terminals)
Operating voltage range: 10.8V-14.6V
Over-charged protection voltage: 14.6V±0.05V
Over-discharge protection voltage: 10.8V±0.05V
Discharge protection temperature: 60℃±0.5℃
Output terminals: red positive and black negative
Storage time: at least 90% power remained in 6 months(it is recommended to charge it in 3 months)
Battery warranty: 12 months (parts and technical support are provided free of charge, and the customer shall bear appropriate logistics costs)
Product advantages:Easy to carry, light weight, large capacity, high power, long working time, long life, safety and environmental protection
Applications
Motors, xenon lamps/searchlights, inverters, handheld devices, wireless communication equipment, surveillance equipment, power equipment, medical equipment, rescue equipment, emergency lighting/LED lights, traffic signs, portable small household appliances, power tools, automobiles and industries Equipment backup power
Safety precautions
1. Do not put the battery in water or get wet
2. Keep the battery away from heat
3. Do not throw the battery into the fire or heat the battery
4. Do not hammer the battery
5. It is forbidden to disassemble the battery in any way
The package includes:

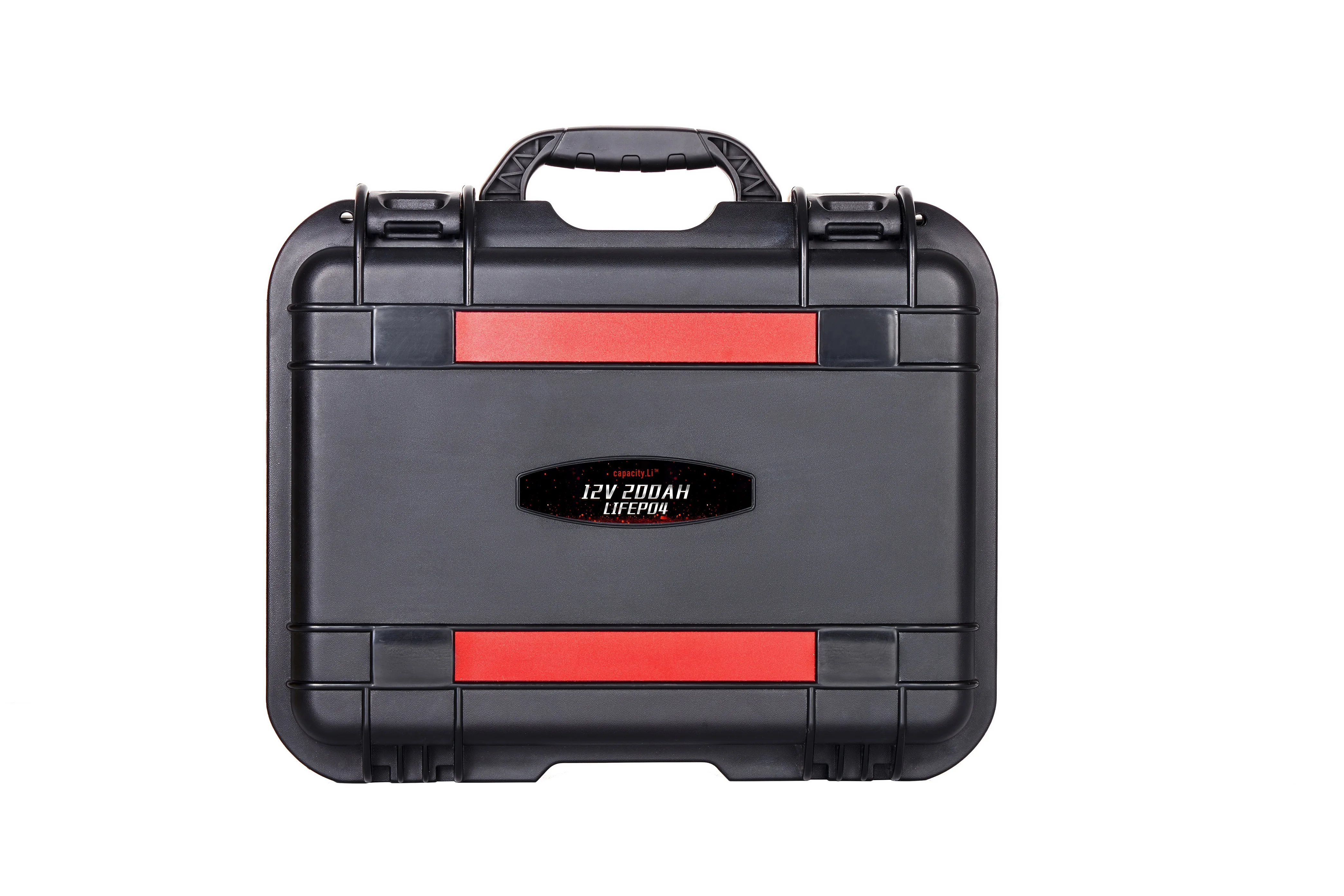

1. 12V 200AH high-capacity LiFePo4 battery pack, built-in BMS, plastic case.
2. optional solar charger.
3. optional inverter.
4. optional car charger.
5. optional boost board.
