1KW Charge Controller with brake function

206,14

New!
China
40A
24V
Build-in Off Grid
Clear
SKU: 1005001299812032 Category:

Description

What is the application of this wind controller ?

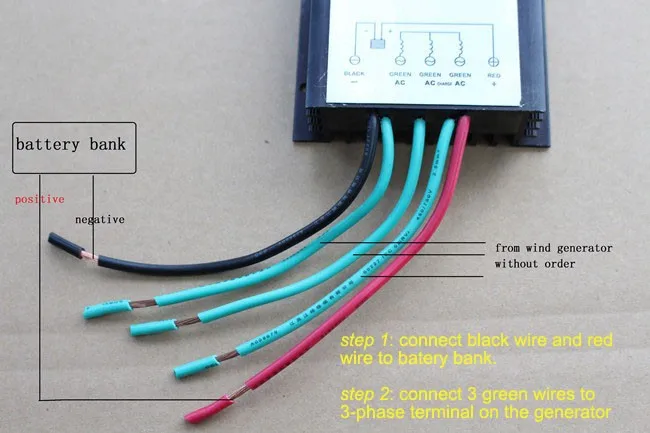

Wind turbine is three phase ac 24v/48v output, and the output voltage is not stable. Wind controller is an important components in the wind system. This wind controller is with top quality and excellent performance.

Datasheet

Model FW1024 FW1048
Wind Power 1000W 1000W
Battery rated voltage 24VDC 48VDC
Wind discharge voltage 29VDC 58VDC
Braking start voltage 30V 60V
Braking recover voltage 27VDC 54VDC
Display LED
Control model PWM(Pulse width modulation)
Operation humiture -35~+75oC
Quiescent current 8 mA
Waterproof IP67
Main function Wind charge cruuent detection, solar panel and battery transposition protection, battery overcharge.protection,short circuit protection,lighting protection, autobrake function.

Additional information

Model Number

FW10-24

Is Smart Device

NO

is_customized

Yes

Maximum Current

40A

Type

Wind controller

function

convert ac to dc

application

connect with wind turbine, to charge battery

is it has break function

yes
