Maximum power(Pmax) 100W Output tolerance 3% Maximum system voltage 700V DC Open circuit voltage(Voc) 19.2V Short circuit current(Isc) 6.87A Maximum power voltage(Vmp) 16V Maximum power current(Imp) 6.25A Cell efficiency 19.5% Operating temperature（NOCT）45±2℃ Temperature range -20℃～+80℃ Number of cells 32pcs Weight 1.9KG Size 1050*540*3mm Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
product : solar controller
Rated Voltage: 12V 24V
Auto Application: solar system
controller Rated Current : 10AMax
PV Voltage: 50V Max.
PV input Power: 130W (12V) 260W(24V)
1) Constructed by high quality material, eco-friendly, durable and sensitive.
2) High in power but sleek in size, it is the perfect item for off-grid applications. High efficiency, conversion rate 20-23%.
3) Emergency charging other 12V battery, suitable for 12V car/boat/motorcyle, etc. Wide range of applications (outdoor, forest, grassland and other power generation, charging, portable emergency charging)

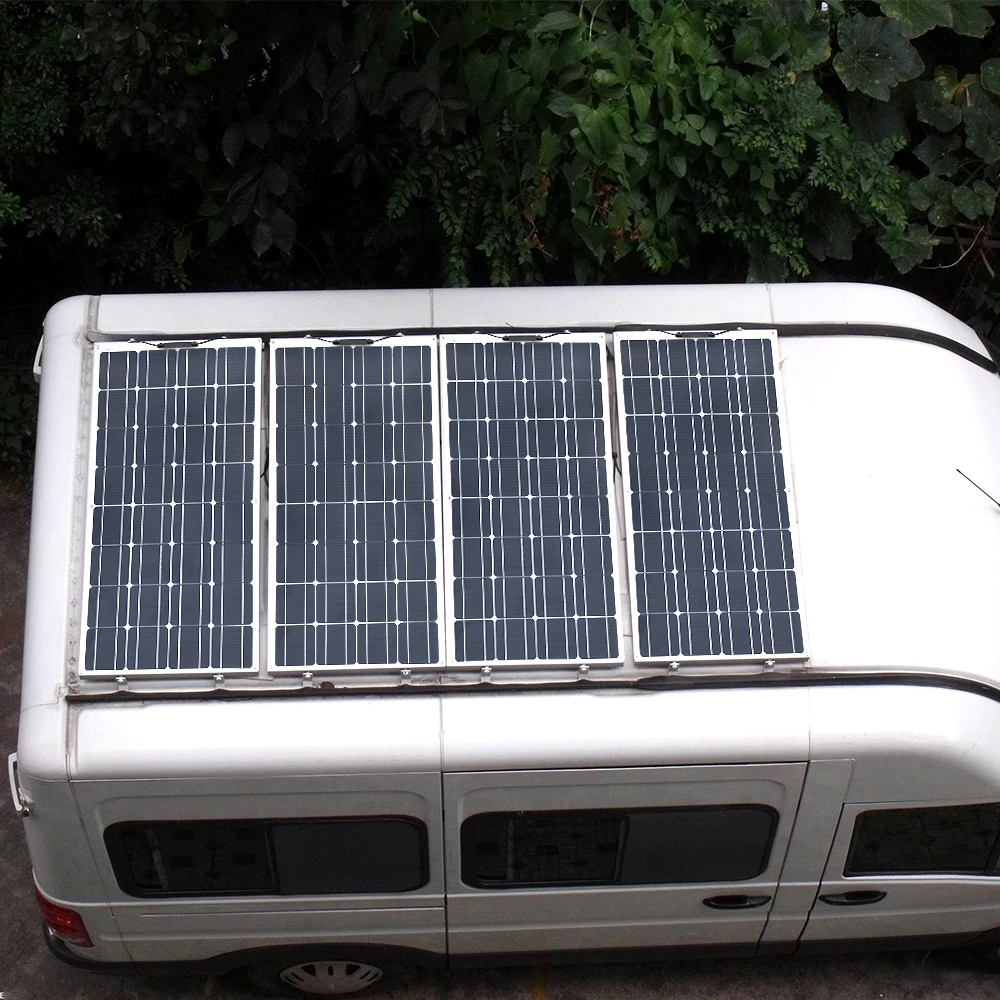

4) Enjoy solar power , Power your RV on the road. Unique frameless design includes six metal reinforced mounting holes for easy installation
5) Sail with solar power and power up your camping gears.For continuous power supply as long as there has sun. Outstanding electrical performance under high temperature and weak light environments
6) Little noise, high efficiency, low malfunction. Rigorous quality control to meet the highest international standards CE,TUV
7) Portable and lightweight, easy for carrying.
8) Positive and negative leads equipped with PV connectors,Two bypass diodes minimizes performance drop due to partial shade,Built in blocking diode to prevent battery discharge at night
9) Best working time: 9:00-17:00 (sunny weather will be better)
10) Strictly quality control ensure the stability and reliability, totally 23 testing procedure to do quality control

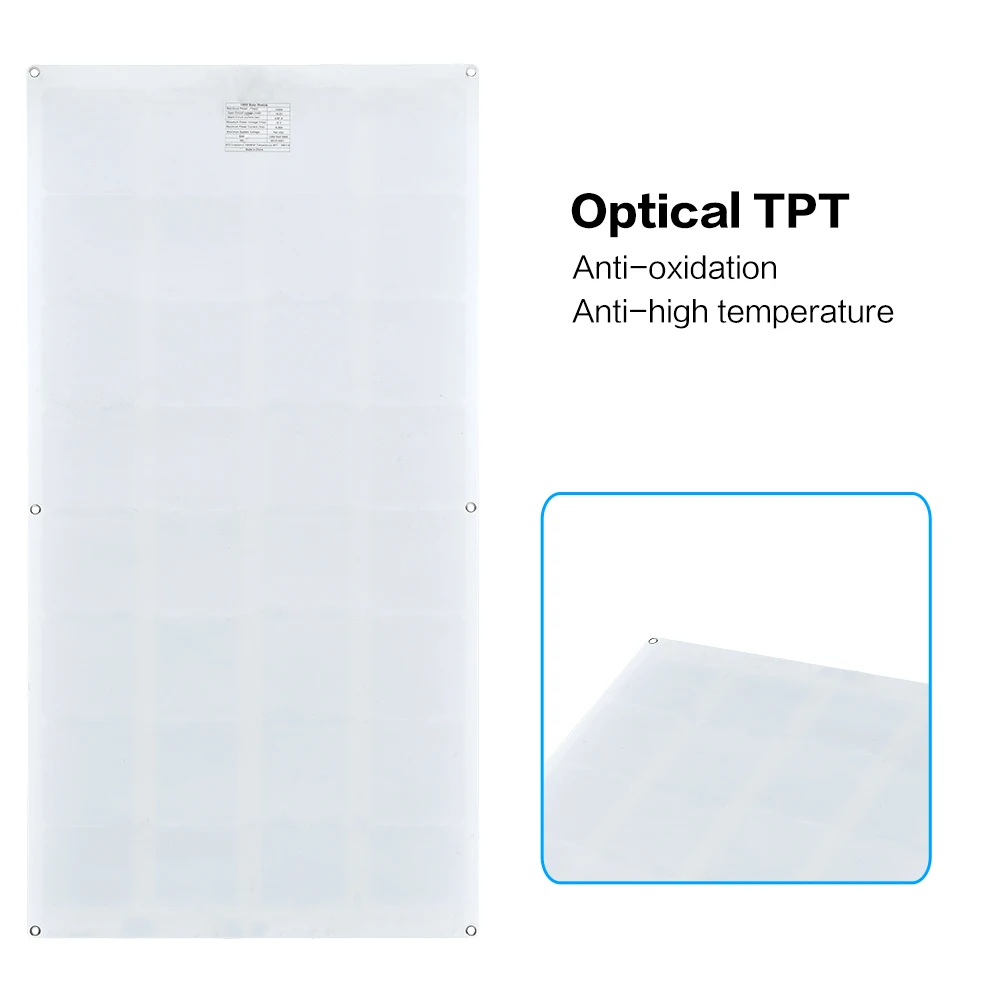

11) High transmittance, flexible lamination material is less prone to cracking than traditional glass
12)Set up easily: Can be conveniently placed on curved solid surfaces Lighter and thinner ,only 2mm thick .
A: 2pcs Solar Panel
B : 1pcs Solar Panel
C：1. 1 pcs flexible solar panel 2. 1pcs 12v/24v/10A controller 3. 1 set 3m cable with pv connector(2.5mm2) 4. 1 set 3m cable with Alligator clip(2.5mm2)
D： 1. 2 pcs flexible solar panel 2. 1pcs 12v/24v/20A controller 3. 1 set 3m cable with pv connector(2.5mm2) 4. 1 set 3m cable with Alligator clip(2.5mm2) 5. 1 set 2 in 1 Adapter
E: 1. 1 pcs flexible solar panel 2. 1pcs 12v/24v/20A controller
