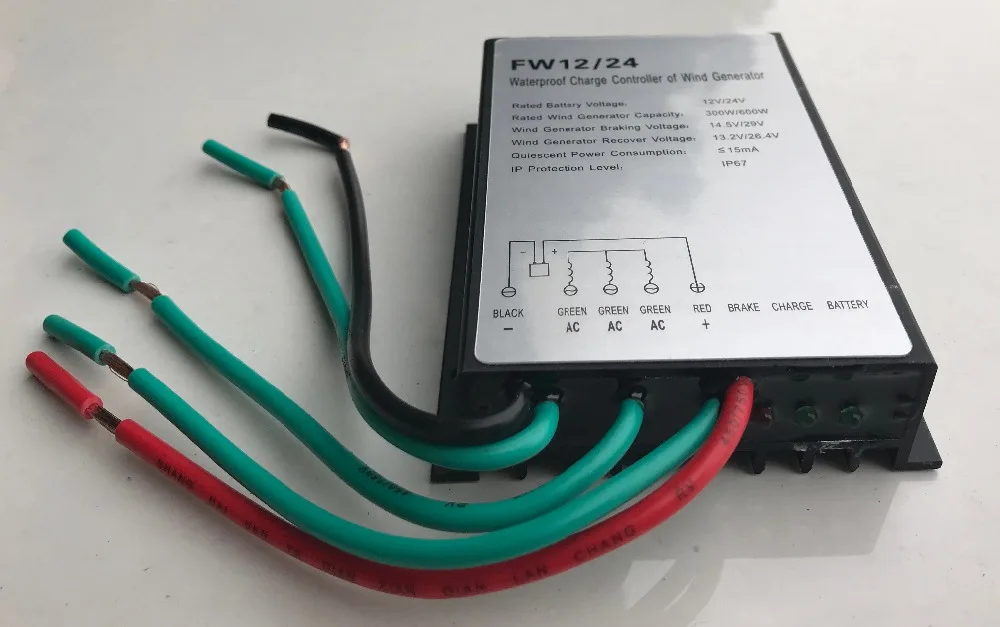

Charge Controller for Wind Generator

49,4862,57

New!
China
Black
Max 25A
12v24v auto charge300w 12v600w 24
off grid controller
Clear
SKU: 32925603645 Category:

Description

Safety Instruction
PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION OR OPERATION OF THIS PRODUCT.
1.1 Please make sure the output voltage of wind generator is consistent with rated battery voltage.
1.2 Please connect the cables of plus-n-minus of battery firstly and then connect the three cables of wind generator.
1.3 Please make sure you connect battery and wind generator with controller according to this instruction, opposite polarity or wrong position connection will result in abnormal operation of system or damage of system components.
1.4 When operating hand braking, please make the smaller red cable and battery anode in short circuit, then controller will brake. Disconnect the smaller red cable, hand braking function will be cancel.
2. Wiring
2.1 Connect the “+” and “-“of battery with battery plus-n-minus input terminals of controller.
2.2 Connect the three cables of wind generator with three voltage input terminals of wind generator of controller.
3. Lights
3.1 When battery light (green) is on, it indicates battery connection is normal.
3.2 When wind generator light (green) is flashing, it indicates wind generator connection is normal and it shows the rotation speed of wind generator by twinkle speed.
3.3 When brake light (red) is on, it indicates controller is braking automatically due to battery full charged or over-current protection function operation of controller.
4. Technical Data
Items FW03-12 / FW06-24
Rated Battery Voltage 12V / 24VDC
Rated Wind Generator Capacity:(Min) 100W 100W
Rated Wind Generator Capacity:(Max) 300W 600W
Wind Generator Braking Voltage 15V 30V
Wind Generator Recover Voltage 13.5V 27V
Wind Generator Braking Current 30A 30A
Display Mode LED
Ambient Temperature -35~+75℃
Quiescent Current ≤20 mA
IP Protection Level IP67
Wiring method

Additional information

Application

Wind Controller
