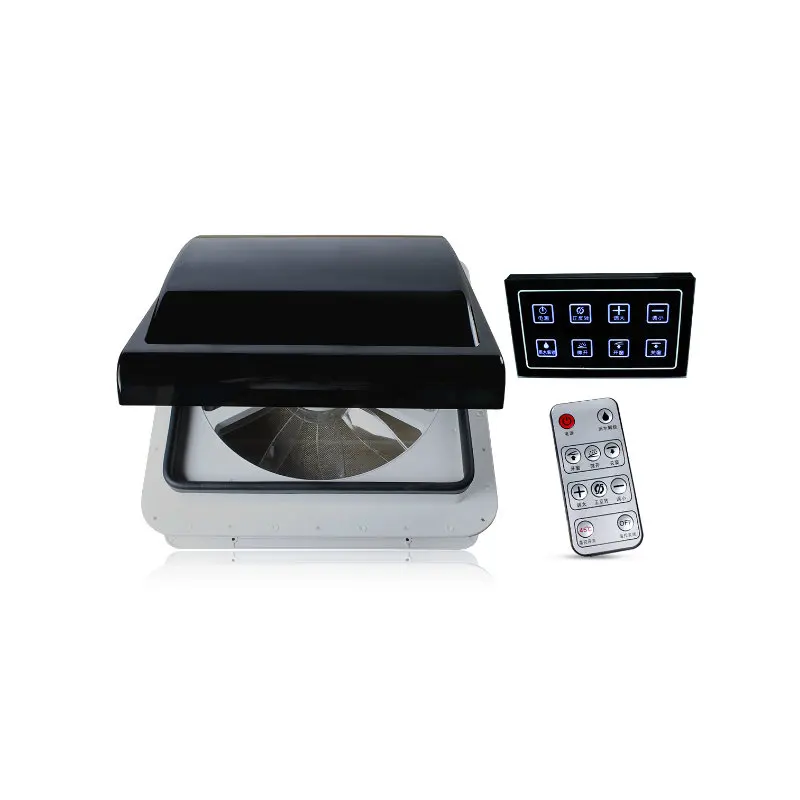

14′ SKYLIGHT WITH 12 VOLT FAN AND SCREEN FOR REMOTE CONTROL

5.00 out of 5 based on 1 rating write a preview

409,26$

New!

In stock

SKU: 4001181402626 Category:

Description

Quick Details

OE NO.:N/A
Place of Origin:Zhejiang, China
Brand Name:TYTXRV
Model Number:0100483
Type:Roof top
Size:420 x 420 x 182 mm, 420 x 420 x 182mm
Certification:CE
Car Make:RV Camper Motorhome
Material:Imported Anti UV ABS
Certificaion:CE
Package:Carton box + bubble bag
Voltage:12V
Warranty:1Year
Power:5-30W adjustable
Cut-out Dimensions:340 x 340mm(Max:380 x 380mm)
Frame color:White
Product name:RV Roof Vent Fan

Packaging & Delivery

Selling Units:Single item
Single package size: 45X45X20 cm
Single gross weight:8.500 kg
Package Type:Carton box + bubble bag

TYTXRV® roof vent fan is dedicated to high-class and smart RVs, with the functions of both supplying and exhausting air. The vent fan cover in gray black color allows the light to enter the van compartment. It brings your RV with light and fresh air.

RV Roof Vent Fan FEATURES:
1. Casing made of imported plastic raw material, long-lasting and anti-yellowing
2. Motor made of pure copper core, reliable and highly efficient
3. Fan with 10 blades, running more stable and more quiet
4. Equipped with stainless steel / anti-rust insect screen
5. Intake and exhaust
6. Controller, rain sensor
7. Thermostat
8. Stepless Speed Adjustable(Push button)

WIRING:
1.5 m2 or above electric wires are required
Red wire connects the battery positive terminal
Black wire connects the battery negative terminal
Blue wire connects the brake line. When the parking brake lever is released, the sunroof is closed. When the parking brake lever is engaged, the vent fan will exhaust air as soon as the temperature is high.

High voltage protection. When the voltage exceeds over 16V, beep sound every second and all keys disabled.
Low voltage protection. When the voltage is lower than 8V or not enough power, buzzer keeps ringing.

6-level speed adjustment. On Level 0, fan is not working. The fan will first stop still before switching to either air supply or
air exhaust mode

v Level 1, Power: 4W, quiet, suitable for night sleep
v Level 2, Power: 8W, quiet,
v Level 3, Power: 14W, Low noise
v Level 4, Power: 22W, Little noise
v Level 5, Power: 30W, Strong, fast air refreshing and cooling
v Level 6, Power: 40W, Super strong, fast cooling

Detail Drawing

The more detail

Additional information

Brand Name

TYTXRV

Origin

CN(Origin)

Item Length

42cm

Material Type

plastic

Item Weight

8.5kg

Item Width

42cm

Model Name

0100483
