Tips: The voltage should not exceed 5V, which will cause permanent damage.
Name: Two-color Music Rhythm LED Light V3.0 (Wire Control)
PCB thickness: 1.6MM FR-4
Power terminal block: MICRO USB interface seat
Audio input socket: GB 3.5MM headphone jack
Supply voltage: DC5V ( The voltage should not exceed 5V, which will cause permanent damage.)
Working current: full load about 500MA, can be powered by ordinary mobile phone charger
Used for: computer, notebook, MP3, DVD, MP4, MP5, mobile phone and other devices with audio output, play the role of the atmosphere and the moving visual effects, let the music move.
The latest : can be connected to the output of the power amplifier board, subwoofer, power amplifier (connected to the speaker), power less than 200W.
Recently, many friends are asking whether they can use it in the car. The answer is yes. You can use the voice control mode and connect to the CD player of the car. The voice control is simple. An external voice control module is just fine. The audio cable is connected to the CD player. Detailed description:

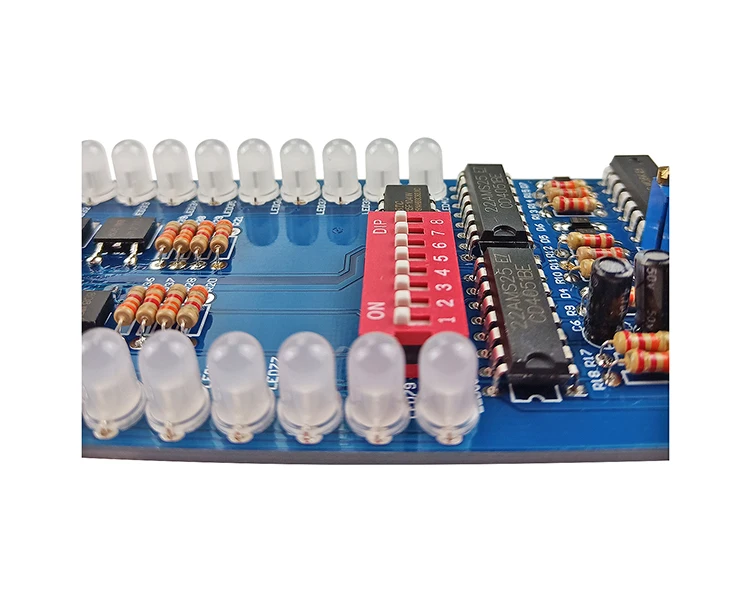

LED lights are 5MM red and green two-color LEDs, 1 row of 40 LEDs, a total of 80 LEDs.
LED color defaults to real-time dynamic display to green and peak display to red
1xGreen+red led music board
1x audio wires
1xaudio Splitter wires
Now the order is shipped to send the latest upgrade board, slightly modified, increased the LED color switching function, size and main function parameters unchanged.
