Pure Sine Wave Inverter 1000W 1600W 2000W 2600W
Hello, dear buyer. Our inverters are all in stock. We will ship the goods within 24 hours after placing the order. Thank you!
When buying an inverter, you must first understand the voltage and frequency used in your country. Purchasing an inverter according to the frequency of your country will greatly improve the conversion efficiency of the inverter. If you have any questions, please contact us before purchasing. Thank you!
The benefits Pure Sine Wave Inverter
Type: Pure Sine Wave Inverter
Output voltage waveform: Pure sine wave
Power: 1000W / 1600W / 2000W /2600W
Output voltage: 220V
Input voltage: 12V / 24V
Output frequency: 50Hz / 60Hz
Socket: Universal(Commonly used in sockets in all countries)
1 x Pure Sine Wave Inverter
1 x English User manual
1xCertificate of conformity
1 x Battery thick line
1 x battery clip
High voltage protection:
(Inverter with 12V input and voltage lower than 10.5V or voltage higher than 15V will automatically protect and disconnect the power supply)
(Inverter with 24V input and voltage lower than 20V or voltage higher than 30V will automatically protect and disconnect the power supply)

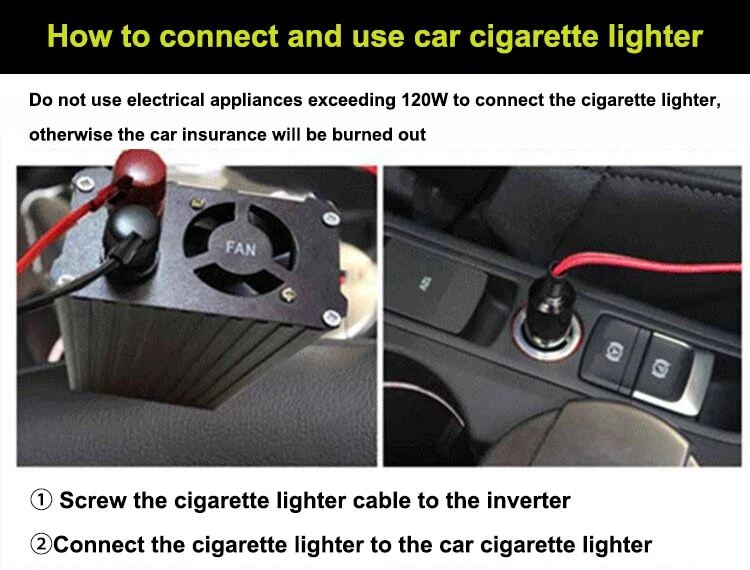

When using 12V / 24V to connect the cigarette lighter wire in the car, please do not exceed 300W (12V car). 400W (24V truck).
If this power is exceeded, please connect the battery output to the inverter, otherwise the car fuse will blow.
The input voltage of 12V inverter and 24V inverter cannot be universal. If the wrong input voltage is selected, the inverter will not work. If you don’t understand anything, please contact customer service, we will reply you as soon as after we see the information. Thank you!
The benefits Pure Sine Wave Inverter.
1:Aluminum-magnesium alloy shell, light weight, good thermal conductivity, can quickly reduce the temperature of components, work long hours are not affected.
2: Pure sine wave, intelligent filter, does not interfere with electrical appliances, protects electrical appliances. With high conversion efficiency (up to 95%), the low power consumption of the product itself can greatly extend battery life.
3:You can use electrical equipment, including TV / LED lights / LCD displays, especially inductive load appliances such as refrigerators, freezers, induction cookers.
4:Pure sine wave inverter, 220V for city power supply and power quality, so it has.
5: Eight-bit intelligent protection: overload protection, high voltage protection, low voltage protection, overheating protection, reverse connection protection, short circuit protection, overcurrent protection, insurance protection,Intelligent chip control, perfect protection.
6:Intelligent temperature control fan makes the inverter more quiet. When the temperature is ≤45 ℃, the fan stops working; when the temperature is ≥45 ℃, the fan starts working.
7:Buzzer reminder. Once any protection of the inverter is triggered, the inverter will immediately disconnect the power, the load enters the protection mode and reminds people with a buzzer reminder.
This is our pure sine wave inverter. We have adopted the latest technology and selected the best element parts for production. The quality is very stable.
2600W Pure sine wave
Peak power 2600W
Continuous power 1300W
Size: 33.3 CM × 10.3CM × 6CM
Package weight 1.75kg
2000W Pure sine wave
Peak power 2000W
Continuous power 1000W
Size: 29.3CM × 10.3CM × 6CM
Package weight 1.5kg
1600W Pure sine wave
Peak power 1600W
Continuous power 800W
Size: 26CM × 10.3CM × 6CM
Package weight 1.35kg
1000W Pure sine wave
Peak power 1000W
Continuous power 500W
Size: 21CM × 10.3CM × 6CM
Package weight 1kg

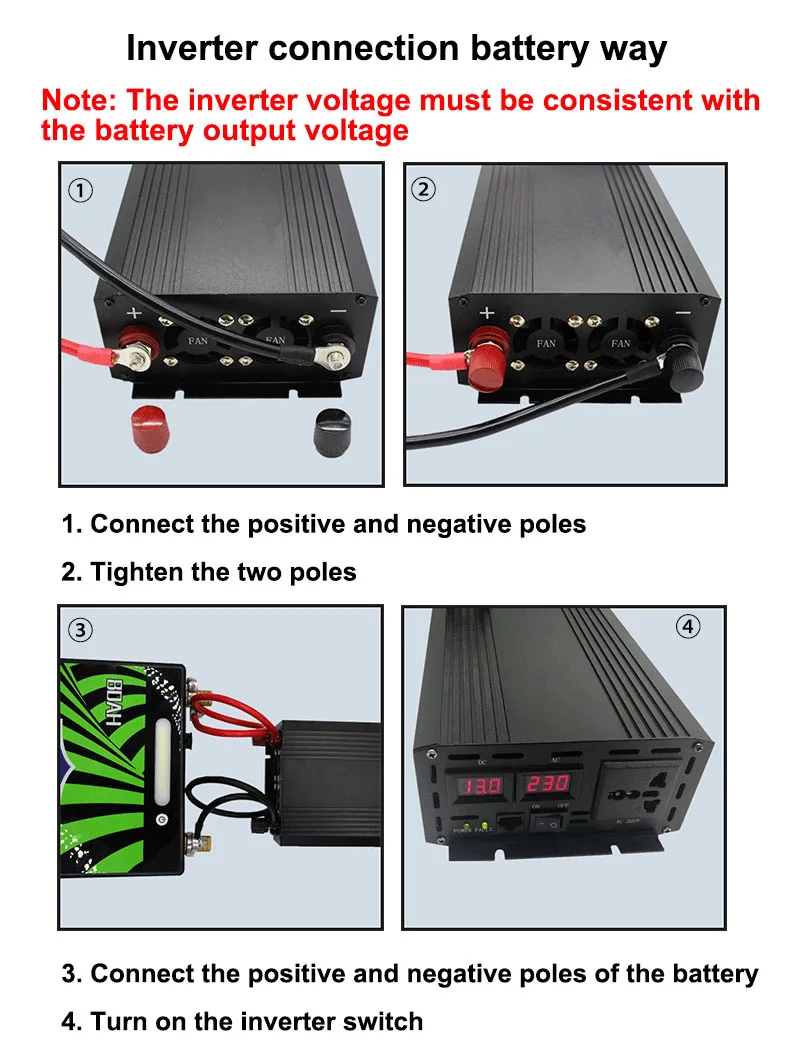

Inverter wiring display
Working principle of inverter
A power conversion device that converts input low-voltage direct current into high-voltage stable alternating current output.
The output volts of the battery should be consistent with the DC input volts of the inverter. For example, a 12V inverter should be selected for a 12V battery, and the positive and negative poles of the battery should be distinguished when connecting.
H (working time) = U (voltage volts) × I (battery capacity) × 0.8 × 0.9 ÷ electrical power
1. The inverter cannot be connected to the power grid and cannot be used to touch the AC output line. The battery equipped with the inverter can provide more power than the actual power consumption of the appliance. When the battery line is lengthened, the corresponding wire diameter must be doubled Crude.
2. Both of the inverter outputs are live wires, and there is no grounding problem. Do not use any one as a ground wire.
3. Connect the inverter to the load. Do not connect any air switch or leakage protection switch in the middle. Hard operation will not only fail to protect, but will damage the inverter.
1. The inverter is not working.
A. Check whether the plug is inserted in place and whether it is loose.
B. Whether the inverter switch is turned on.
C. Whether the car cigarette lighter jack has voltage output, such as external leads, and whether the polarity is correct.
2. Insufficient output power of the inverter can only drive low-power electrical appliances
A. The capacity of the battery is too small, and electrical appliances must be replaced or reduced.
B. The battery voltage is too low and must be charged or replaced.
C. If you change to another car, the inverter is normal, and you need to go to a professional repair shop to thicken the car cigarette lighter jack cable. The use of the cigarette lighter socket shall not exceed a load of 150W.
D. If it is an external battery, thicken the lead to shorten the lead length
3. The inverter does not work and the FALT light is off
A. The electrical power used exceeds the nominal power, causing protection. Reduce the use of electrical power
B. The battery voltage is too low, the battery must be charged or replaced
C. Reduce the use of power appliances
