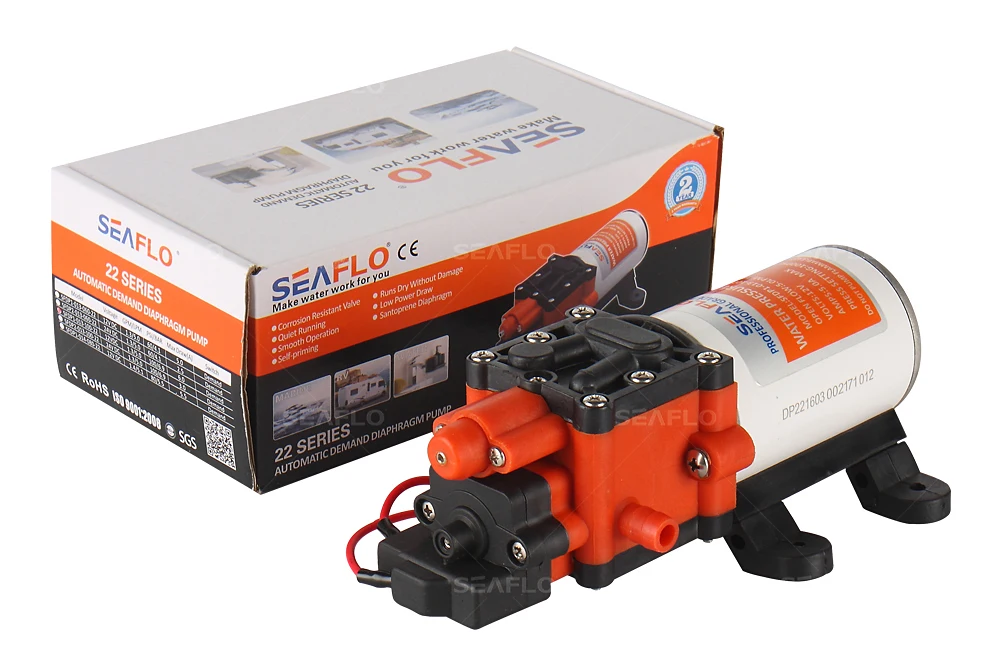

DC Diaphragm Pump 12V/24V 2.0-5.0LPM 17-120PSI


SKU: 32922921442 Category:


12V/24V 2.0-5.0LPM 17-120PSI
The 22-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The 22-series of diaphragm pumps are self-priming, can be run dry without harm and have an internal bypass feature which reduces pump cycling. It provides up to 1.4 gallons per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.
– By pass technology reduces cycling.
– 18AWG,9.5"long Leads.
– Capable of supplying1-2 fixtures.
– Run dry safe.
– Adjustable pressure setting.
-2 Year Warranty.
– Meets or exceeds RoHS, SGS, and ISO standards.
Type 2 Chamber positive displacement diaphragm
pump, self priming, capable of being run dry
Control Type Pressure switch & By pass control
Max Recommended Temperature 60° C (140° F)
Priming Capabilities 6 feet (1.8 m) suction lift
Re-start Pressure Shut-off Pressure 60 PSI : 48 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 80 PSI : 65 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 100 PSI : 75 PSI ±5 PSI (±0.3 bar)
Inlet/Outlet Ports 3/8″ (10 mm) hose barb
Weight 2.4 lbs (1.1 kg)
Leads 18 AWG, 10″ (25 cm) long with 2-Pin connector / Leads
Duty Cycle Intermittent
Max. Draw 6.0 A
Fuse Amps 9.0 A
Marine,RV,Agricutural Spraying,General Industial,Filtration,Beverage Processing,Solar Water System.
