400W FLEXIBLE SOLAR PANELS KIT

5.00 out of 5 based on 1 rating write a preview

557,57$561,58$

-11%New!Sale!
ChinaRussian FederationSpainUnited States
400W solar panel kit
Clear
SKU: 4000126590548 Category:

Description

♣ (Excellent performance): High efficiency monocrystalline solar cells offer good performance even under poor light condition, internal diodes can prevent current leakage during night time.
♣ (Nice Details): The water resistant semi-flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof.
♣ (Bendable Panel): The plastic back sheet can be curved to a maximum 30 degree arc and mounted on an RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface.
♣ (Easy Installation):This solar panel packs 100W of power, but it only weighs a mere 1.7kg (3.75lb)and unique frameless design and siz metal reinforced mounting holes for easy installation, making it easier to transport, hang and remove.
♣ (Practicality):solar panel can be used as emergency power, and it is used in places where electricity is scarce and where the city power cannot reach.

Solar panel Specification:

Maximum power(Pmax): 100W

Output tolerance:+ 3%

Maximum system voltage: 700V DC

Open circuit voltage(Voc): 19.2V

Short circuit current(Isc): 6.87A

Maximum power voltage(Vmp): 16V

Maximum power current(Imp): 6.25A

Cell efficiency: 19.5%

Operating temperature(NOCT): 45±2℃

Temperature range: -20℃~+80℃

Weight: 1.7KG

Size: 1050*540*3 mm

Standard Test Conditions: lrradiance 1000w/m2,Temperature 25℃,AM=1.5

Features:

1. Constructed by high quality material, slightly waterproof, durable and sensitive,junction box device diode.

2. The solar panels sheet can be curved to a maximum 30 degree arc and mounted on an RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface

3. Portable and lightweight, easy for carrying.Unique frameless design and six (8MM)metal reinforced mounting holes for easy installation

4. High conversion for continuous power supply as long as there has sun.

5. Suitable for outdoor activities, emergency, and outdoor working.



null

null

Tips:

1.Pay attention to the installation sequence, first connect the controller to the battery, then connect the controller to the solar panel. Otherwise the controller will not work.

2.The plastic film is used to protect the panel,just as the phone’s film, please remove it when using.

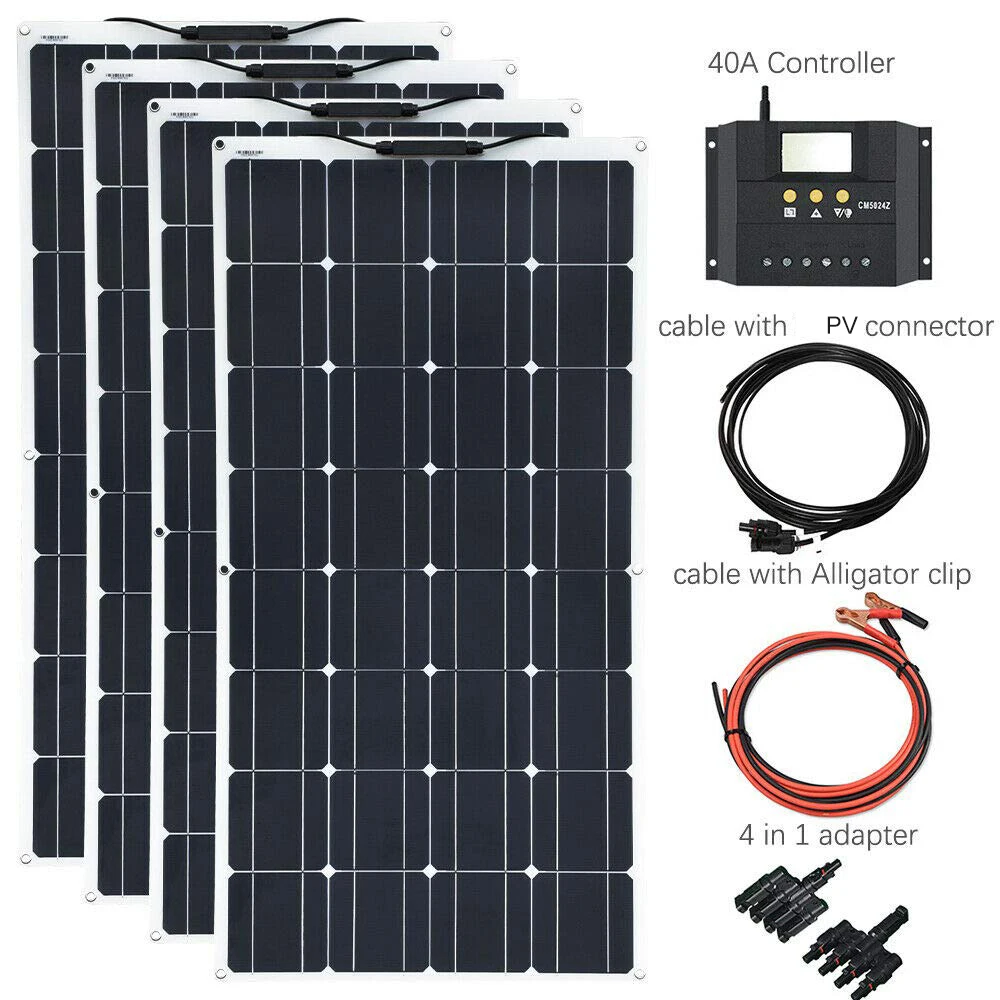

Packing list

1. 4pcs solar panel

2. 40A charger controller

3.1 sets cable with PV connector

4.1 sets cable with Crocodile clip line

5.1 sets 4 in 1 connector

null

null

null

null

Additional information

Brand Name

xinpuguang

Origin

CN(Origin)

Foldable Solar Panel

No

Number of Panels

4

Flexible Solar Panel

Yes

Type

Solar Panel

Nominal Capacity

400 watt

Size

1050*540*2mm

Model Number

400w solar panel kit

is_customized

Yes

Number of Cells

32*4

Material

Monocrystalline Silicon

Certification

RoHS

Max. Power

400w

series connection solar panel

Connect 24V battery

parallel connection solar panel

Connect 12V battery

Solar Panel Solar Cell

solar panel kit complete
